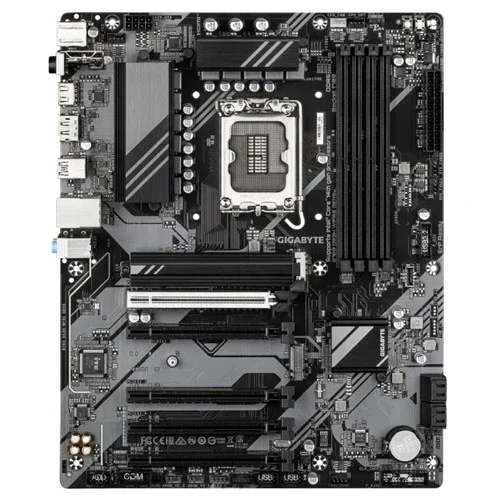

Matična ploča 1700 Gigabyte B760 DS3H WF6E GEN5 je proizvod iz kategorije Matične ploče.
-
Podrška za procesoreIntel 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
-
Tip memorije - RAMDDR5
-
ModelGigabyte B760 DS3H WIFI6E GEN5 ATX LGA1700 Matična ploča
-
SocketIntel Socket 1700 (LGA1700)
-
Skup čipova (Chipset)Intel B760
-
Broj memorijskih slotova4x 288-Pin DDR5
| Model | Gigabyte B760 DS3H WIFI6E GEN5 ATX LGA1700 Matična ploča |
|---|---|
| Socket | Intel Socket 1700 (LGA1700) |
| Skup čipova (Chipset) | Intel B760 |
| Podrška za procesore | Intel 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Tip memorije - RAM | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Opis za memorije | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Opis za proširenja | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| Ukupno M.2 slotova | 2x M.2 slot |
| SATA portovi | 4x SATA 6Gb/s |
| Brzina LAN porta | Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Wi-Fi standard | Intel Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Bluetooth verzija | 5.3 |
| Zvuk / Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Ukupan broj USB portova | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |

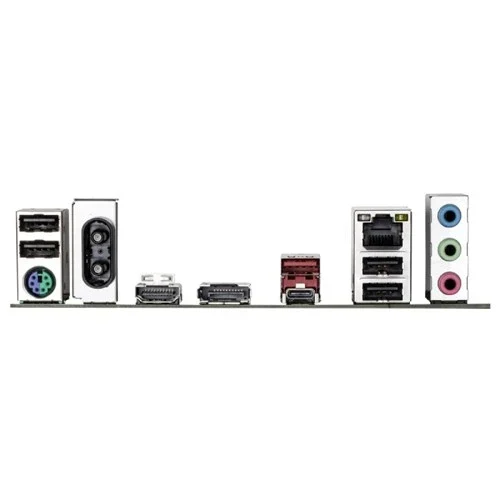

| Konektori na zadnjoj strani | 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x RJ-45 port 3 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | ATX |
| Naziv i vrsta robe | Matične ploče |
|---|---|
| Model | Gigabyte B760 DS3H WIFI6E GEN5 ATX LGA1700 Matična ploča |
| Proizvođač | Gigabyte |
| Uvoznik | Podatak nije dostavljen |
| Zemlja porekla | Podatak nije dostavljen |
| Prava potrošača | Prava potrošača ostvaruju se u skladu sa važećim propisima Republike Srbije. |
