Audio
|
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|
LAN
|
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
|
•Stavka
|
- Dragon RTL8125BG |
|
•Stavka
|
- Supports Dragon 2.5G LAN Software |
|
•Stavka
|
- Smart Auto Adjust Bandwidth Control |
|
Visual Network Usage Statistics
|
- Optimized Default Setting for Game, Browser, and Streaming Modes |
|
CPU:
|
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
|
•Stavka
|
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* |
|
Chipset:
|
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
Supports AMD CrossFire™
|
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
CPU:
|
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* |
|
Chipset:
|
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
|
•Stavka
|
- 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* |
|
•Stavka
|
- 4 x SATA3 6.0 Gb/s Connectors |
|
RAID
|
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
|
•Stavka
|
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
|
•Stavka
|
*Requires additional M.2 NVMe expansion cards to support RAID 10 |
|
USB
|
- 1 x USB 3.2 Gen2 Type-C (Rear) |
|
•Stavka
|
- 1 x USB 3.2 Gen2 Type-A (Rear) |
|
•Stavka
|
- 1 x USB 3.2 Gen1 Type-C (Front) |
|
•Stavka
|
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) |
|
•Stavka
|
- 8 x USB 2.0 (4 Rear, 4 Front) |
|
•Stavka
|
*All USB ports support ESD Protection |
|
1 x CPU Fan Connector (4-pin)***
|
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
|
•Stavka
|
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
|
•Stavka
|
- 1 x 24 pin ATX Power Connector |
|
•Stavka
|
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
|
1 x Front Panel Audio Connector
|
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) |
|
•Stavka
|
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
|
•Stavka
|
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
|
•Stavka
|
- 1 x Front Panel Type C USB 3.2 Gen1 Header |
|
•Stavka
|
*Supports in total up to 12V/3A, 36W LED Strip |
|
•Stavka
|
**Support in total up to 5V/3A, 15W LED Strip |
|
•Stavka
|
***CPU_FAN1 supports the fan power up to 1A (12W). |
|
•Stavka
|
****CPU_FAN2/WP supports the fan power up to 2A (24W). |
|
•Stavka
|
*****CHA_FAN1~3/WP support the fan power up to 2A (24W). |
|
•Stavka
|
CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |
|

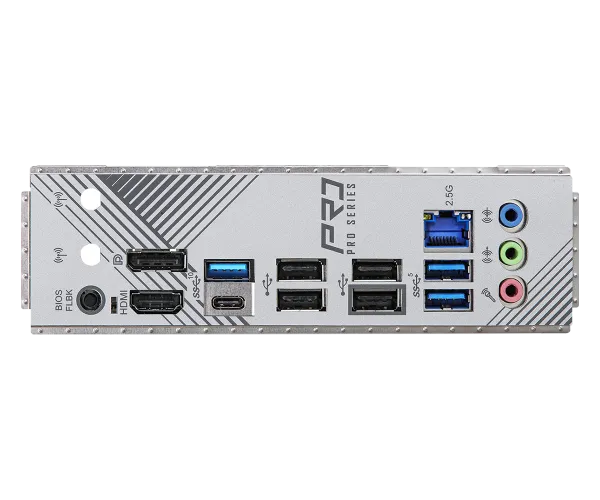

1 x HDMI Port
|
- 1 x DisplayPort 1.4 |
|
•Stavka
|
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
|
•Stavka
|
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) |
|
•Stavka
|
- 2 x USB 3.2 Gen1 Ports |
|
•Stavka
|
- 4 x USB 2.0 Ports |
|
•Stavka
|
- 1 x RJ-45 LAN Port |
|
1 x BIOS Flashback Button
|
- HD Audio Jacks: Line in / Front Speaker / Microphone |
