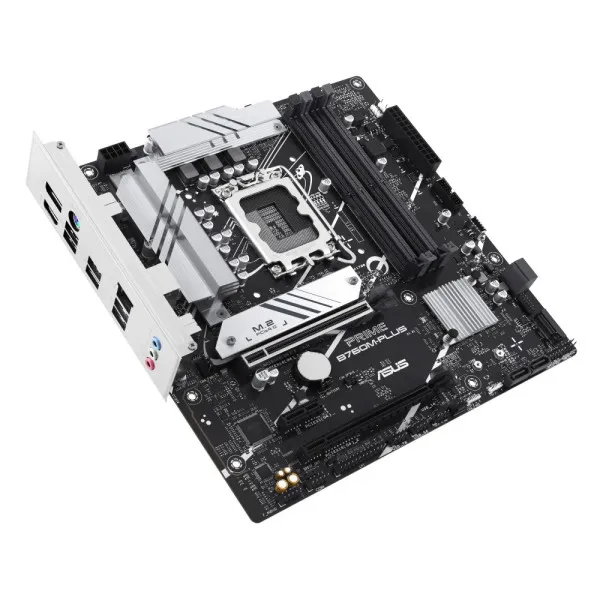

MB s1700 ASUS PRIME B760M-PLUS je proizvod iz kategorije Matične ploče.
Model PRIME B760M-PLUS
CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Chipset Intel® B760 Chipset
Memory 4 x DIMM slots, max. 192GB, DDR5
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Specifikacije
Model
PRIME B760M-PLUS
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Chipset
Intel® B760 Chipset
Memory
4 x DIMM slots, max. 192GB, DDR5
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Expansion Slots
Intel® CoreTM Processors (14th & 13th & 12th Gen)*
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Mreža
Ethernet
1 x Realtek 2.5Gb Ethernet
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
Mreža
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 5Gbps connector ((supports USB Type-C®)
• Stavka
1 x USB 5Gbps headers support 2 additional USB 5Gbps ports
• Stavka
3 x USB 2.0 header support 5 additional USB 2.0 ports
* USB Type-C® power delivery output
max. 5V/3A
• Stavka
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
• Stavka
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• Stavka
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Audio
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports
Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Stavka
- Supports up to 24-Bit/192 kHz playback"
Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Stavka
Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Stavka
- Supports up to 24-Bit/192 kHz playback
Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A)
• Stavka
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
Power related
1 x 24-pin Main Power connector
• Stavka
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 5Gbps connector (supports USB Type-C® )
• Stavka
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• Stavka
3 x USB 2.0 header support 5 additional USB 2.0 ports
1 x COM Port header
1 x Front panel audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
• Stavka
1 x 20-3 pin System Panel header with Chassis intrude function
• Stavka
3 x USB 2.0 headers support 5 additional USB 2.0 ports
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
ASUS Thermal Solution
- M.2 heatsink
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
• Stavka
WinRAR (40 Days Free Trial)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Miscellaneous
1 x M.2 Rubber Package
• Stavka
1 x Screw package for M.2 SSD
