Audio
|
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|
LAN
|
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
|
•Stavka
|
- Dragon RTL8125BG |
|
•Stavka
|
- Supports Dragon 2.5G LAN Software |
|
•Stavka
|
- Smart Auto Adjust Bandwidth Control |
|
Visual Network Usage Statistics
|
- Optimized Default Setting for Game, Browser, and Streaming Modes |
|
CPU:
|
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
|
Chipset:
|
- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode* |
|
•Stavka
|
- 1 x PCIe 4.0 x1 Slot (PCIE2)* |
|
•Stavka
|
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
|
•Stavka
|
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. |
|
CPU:
|
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* |
|
•Stavka
|
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* |
|
Chipset:
|
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* |
|
•Stavka
|
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* |
|
•Stavka
|
- 4 x SATA3 6.0 Gb/s Connectors |
|
•Stavka
|
* Supports Intel® Volume Management Device (VMD) |
|
RAID
|
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
•Stavka
|
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
1 x Thunderbolt™ 4 Type-C (Rear)
|
- 1 x USB 3.2 Gen2x2 Type-C (Rear) |
|
Chipset:
|
- 1 x USB 3.2 Gen2x2 Type-C (Front) |
|
•Stavka
|
- 1 x USB 3.2 Gen2 Type-A (Rear) |
|
•Stavka
|
- 6 x USB 3.2 Gen1 (2 Rear, 4 Front) |
|
•Stavka
|
- 8 x USB 2.0 (4 Rear, 4 Front) |
|
•Stavka
|
* All USB ports support ESD Protection |
|
3 x Addressable LED Headers**
|
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** |
|
•Stavka
|
- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** |
|
•Stavka
|
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** |
|
•Stavka
|
- 1 x 24 pin ATX Power Connector |
|
•Stavka
|
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
|
1 x Front Panel Audio Connector
|
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
|
•Stavka
|
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
|
•Stavka
|
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
|
•Stavka
|
* Supports in total up to 12V/3A, 36W LED Strip |
|
•Stavka
|
** Support in total up to 5V/3A, 15W LED Strip |
|
•Stavka
|
*** CPU_FAN1 supports the fan power up to 1A (12W). |
|
•Stavka
|
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W). |
|
•Stavka
|
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
|

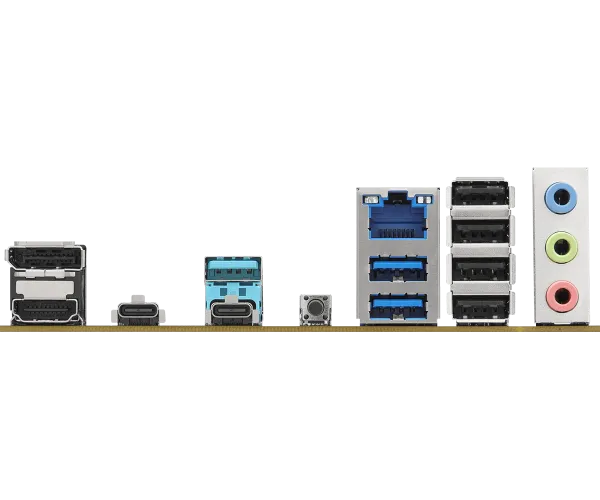

1 x HDMI Port
|
- 1 x DisplayPort 1.4 |
|
•Stavka
|
- 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* |
|
•Stavka
|
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) |
|
•Stavka
|
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
|
•Stavka
|
- 2 x USB 3.2 Gen1 Ports |
|
•Stavka
|
- 4 x USB 2.0 Ports |
|
•Stavka
|
- 1 x RJ-45 LAN Port |
|
1 x BIOS Flashback Button
|
- HD Audio Jacks: Line in / Front Speaker / Microphone |
|
•Stavka
|
* Supports USB PD 3.0 up to 5V@3A (15W) charging |
|
Software
|
- ASRock Motherboard Utility (A-Tuning) |
|
•Stavka
|
- ASRock Dragon 2.5G LAN Software |
|
ASRock Instant Flash
|
*These utilities can be downloaded from ASRock Live Update & APP Shop. |
|
2 x SATA Data Cables
|
- 1 x Screw for M.2 Socket |
|
Form Factor
|
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
