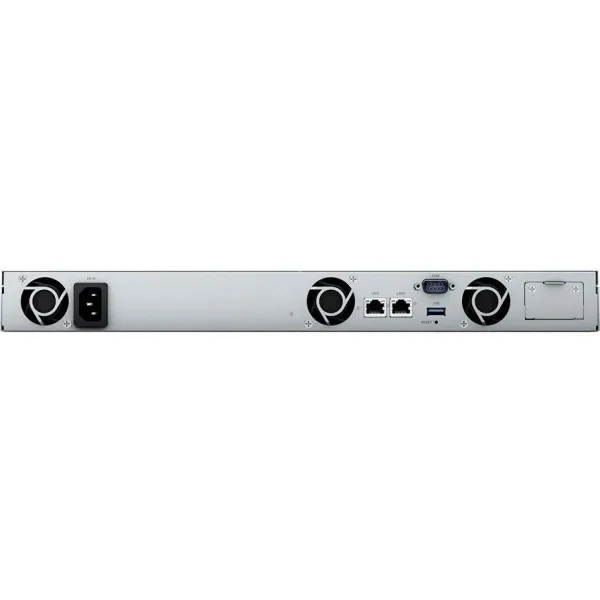

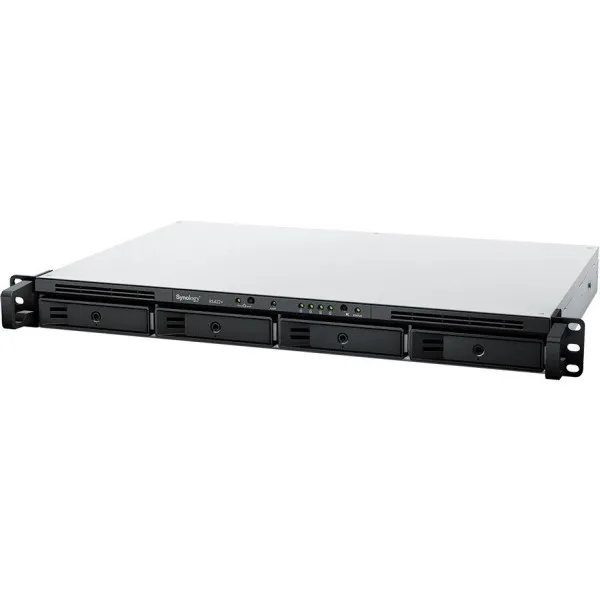

NAS Synology RS422+ RackStation 4-bay je proizvod iz kategorije NAS uređaji.
-
Enterprise Series 2.5" SATA SSDSAT5200 Series
-
CPU ModelAMD Ryzen R1600
-
CPU Architecture64-bit
-
CPU Frequency2.6 (base) / 3.1 (turbo) GHz
-
External PortsRJ-45 1GbE LAN Port
-
NotesThis device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
| CPU Model | AMD Ryzen R1600 |
|---|---|
| CPU Architecture | 64-bit |
| CPU Frequency | 2.6 (base) / 3.1 (turbo) GHz |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
| External Ports | RJ-45 1GbE LAN Port |
| Notes | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. |
| Size (Height x Width x Depth) | 44 mm x 478 mm x 327.5 mm |
| Weight | 4.38 kg |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02) |
| System Fan | 40 mm x 40 mm x 3 pcs |
| Noise Level* | 28.5 dB(A) |
| Power Supply Unit / Adapter | 100 watts |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 37.93 watts (Access) |
| British Thermal Unit | 129.42 BTU/hr (Access) |
| Notes | For more information on how power consumption is measured, refer to this article. |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Warranty | 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) |
| Environment | RoHS Compliant |
| Optional Accessories | Enterprise Series 3.5" SATA HDD: HAT5300 Series |
| Plus Series 3.5" SATA HDD | HAT3300 Series |
| Enterprise Series 2.5" SATA SSD | SAT5200 Series |
| 10GbE Network Upgrade Module | E10G22-T1-Mini |
| Rail Kit Sliding | RKS-02 |
| Rail Kit Mounted | RKM114* |
| Notes | Certain items may not be available in your location. Please contact your local distributors for more information. |
| Maximum Single Volume Size | 108 TB |
| Maximum Internal Volume Number | 64 |
| RAID 6 | RAID 10 |
| Notes | Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. |
| Notes | The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed. |
| Maximum Local User Accounts | 2,048 |
| Maximum Local Groups | 256 |
| Maximum Shared Folder | 512 |
| Maximum Hybrid Share Folders | 10 |
| Notes | Full-system backup requires DSM 7.2 or later. |
| Syslog Events per Second | 800 |
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
| Notes | For an updated list of supported browser versions, check the DSM Technical Specifications. |
| Suggested Users | 100 |
| Notes | Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. |
| Maximum Concurrent Download Tasks | 80 |
| Maximum iSCSI Target Number | 128 |
| Maximum LUN | 256 |
| Maximum Snapshots per Shared Folder | 1,024 |
| Maximum of System Snapshots | 65,536 |
| Default Licenses | 2 (Additional cameras require purchase of licenses) |
| 1080p | 40 channels, 800 FPS |
| 3M | 35 channels, 350 FPS |
| 5M | 28 channels, 280 FPS |
| 4K | 17 channels, 170 FPS |
| 1080p | 40 channels, 1200 FPS |
| 3M | 40 channels, 600 FPS |
| 5M | 40 channels, 480 FPS |
| 4K | 20 channels, 200 FPS |
| Notes | Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. |
| Synology Drive | Recommended Number of Concurrent Sync Clients |
| Recommended Number of Hosted Files | 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) |
| Notes | Exceeding the recommended numbers above will not block application operations, but may result in longer response time. |
| Suggested Users | 3,000 |
| Notes | Suggested users is derived from testing in an environment with 60% idle users (each logging in and viewing documents) and 40% active users (each executing random actions at intervals of 20 to 40 seconds) operating within documents, each document having 30 users. Learn more |
| Maximum Connections | 40 |
| Naziv i vrsta robe | NAS uređaji |
|---|---|
| Model | Podatak nije dostavljen |
| Proizvođač | Synology |
| Uvoznik | Podatak nije dostavljen |
| Zemlja porekla | Podatak nije dostavljen |
| Prava potrošača | Prava potrošača ostvaruju se u skladu sa važećim propisima Republike Srbije. |
