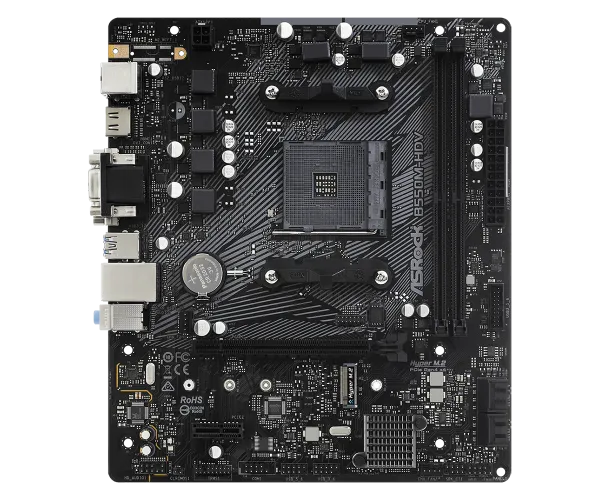

MB AM4 ASRock B550M-HDV 90-MXBDJ0-A0UAYZ

Šifra: DSC-29869
EAN: 4710483931635

Podnožje (socket)AM4

Na stanju Cena sa PDV-om

10.290 RSD

Pošaljite upit +381 37 3520 990

Preuzimanje u Kruševcu

Hajduk Veljkova 25, po dogovoru. Radnim danima 09:00–17:00. Javite se pre dolaska da pripremimo robu.

Kako do nas →

Isporuka i plaćanje Rok i trošak isporuke potvrđujemo pri porudžbini.
Garancija i reklamacije Kako ostvariti pravo na reklamaciju

MB AM4 ASRock B550M-HDV 90-MXBDJ0-A0UAYZ je proizvod iz kategorije Matične ploče.

*Supports NVMe SSD as boot disksSupports ASRock U.2 Kit
CPU- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
6 Power Phase design*Not compatible with AMD Athlon™ Processors.
Chipset- AMD B550
Memory- Dual Channel DDR4 Memory Technology
Max. capacity of system memory64GB**

Specifikacije

CPU	- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
6 Power Phase design	*Not compatible with AMD Athlon™ Processors.
Chipset	- AMD B550
Memory	- Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots	- AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
Max. capacity of system memory	64GB**
SR	Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR	Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"	- ACPI 5.1 compliance wake up events
Supports jumperfree	- SMBIOS 2.3 support
Graphics	- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
Three graphics output options	D-Sub, DVI-D and HDMI
Supports Triple Monitor	- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
*Actual support may vary by CPU	**The Max shared memory 16GB requires 32GB system memory installed.

Audio

Audio	- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Stavka	- Realtek RTL8111H
Supports Lightning/ESD Protection	- Supports Energy Efficient Ethernet 802.3az
Slots	AMD Ryzen series CPUs (Vermeer and Matisse)
1 x PCI Express 4.0 x16 Slot (PCIE1	x16 mode)*
Stavka	AMD Ryzen series APUs (Cezanne and Renoir)
1 x PCI Express 3.0 x16 Slot (PCIE1	x16 mode)*
AMD Ryzen series APUs (Picasso)	- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
Stavka	- 1 x PCI Express 3.0 x1 Slot
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
Stavka	- 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*
*Supports NVMe SSD as boot disks	Supports ASRock U.2 Kit
1 x COM Port Header	- 1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*	- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
Stavka	- 1 x 24 pin ATX Power Connector
Stavka	- 1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector	- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
Stavka	- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Stavka	*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
Stavka	**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
Stavka	CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
1 x HDMI Port	- 2 x USB 2.0 Ports (Supports ESD Protection)
Stavka	- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
Stavka	- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks	Line in / Front Speaker / Microphone
Software	- ASRock Motherboard Utility (A-Tuning)
ASRock Instant Flash	*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables	- 1 x Screw for M.2 Socket
Hardware Monitor	- Temperature Sensing: CPU, Chassis Fans
Fan Tachometer	CPU, Chassis Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature)	CPU, Chassis Fans
Fan Multi-Speed Control	CPU, Chassis Fans
CASE OPEN detection	- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor	- Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm

Naziv i vrsta robe	Matične ploče
Model	Podatak nije dostavljen
Proizvođač	ASRock
Uvoznik	Podatak nije dostavljen
Zemlja porekla	Podatak nije dostavljen
Prava potrošača	Prava potrošača ostvaruju se u skladu sa važećim propisima Republike Srbije.
